TDG-CAM-206 HD Mini Dome Camera — 170° Super-Wide Angle, Flush Mounting, IP69K

TDG-CAM-206 is a low-profile 1080P HD mini dome camera for in-vehicle and exterior monitoring. Its 170° super-wide lens sits beneath a clear dome cover and covers passenger and crew compartments, cargo areas and the vehicle surroundings from a single position.

The camera is designed for flush ceiling or body mounting, so it stays out of the way of crew and equipment. It offers a signal-to-noise ratio better than 52 dB with automatic AGC / BLC / WB, draws at most 110 mA at 12 VDC, is rated IP69K and withstands 5.9G vibration. It weighs about 0.2 kg and operates from −20 °C to +70 °C.

Imaging:

Lens, electrical and physical:

The technical values refer to the standard configuration. Connector, cable length and mounting interface can be adapted to project requirements.

• Troop and crew compartment monitoring in armoured personnel carriers and tactical vehicles
• Passenger compartment monitoring in personnel transport and command vehicles
• Cargo and equipment areas of logistics and special-purpose vehicles
• Exterior surround views where a flush, low-profile camera is required

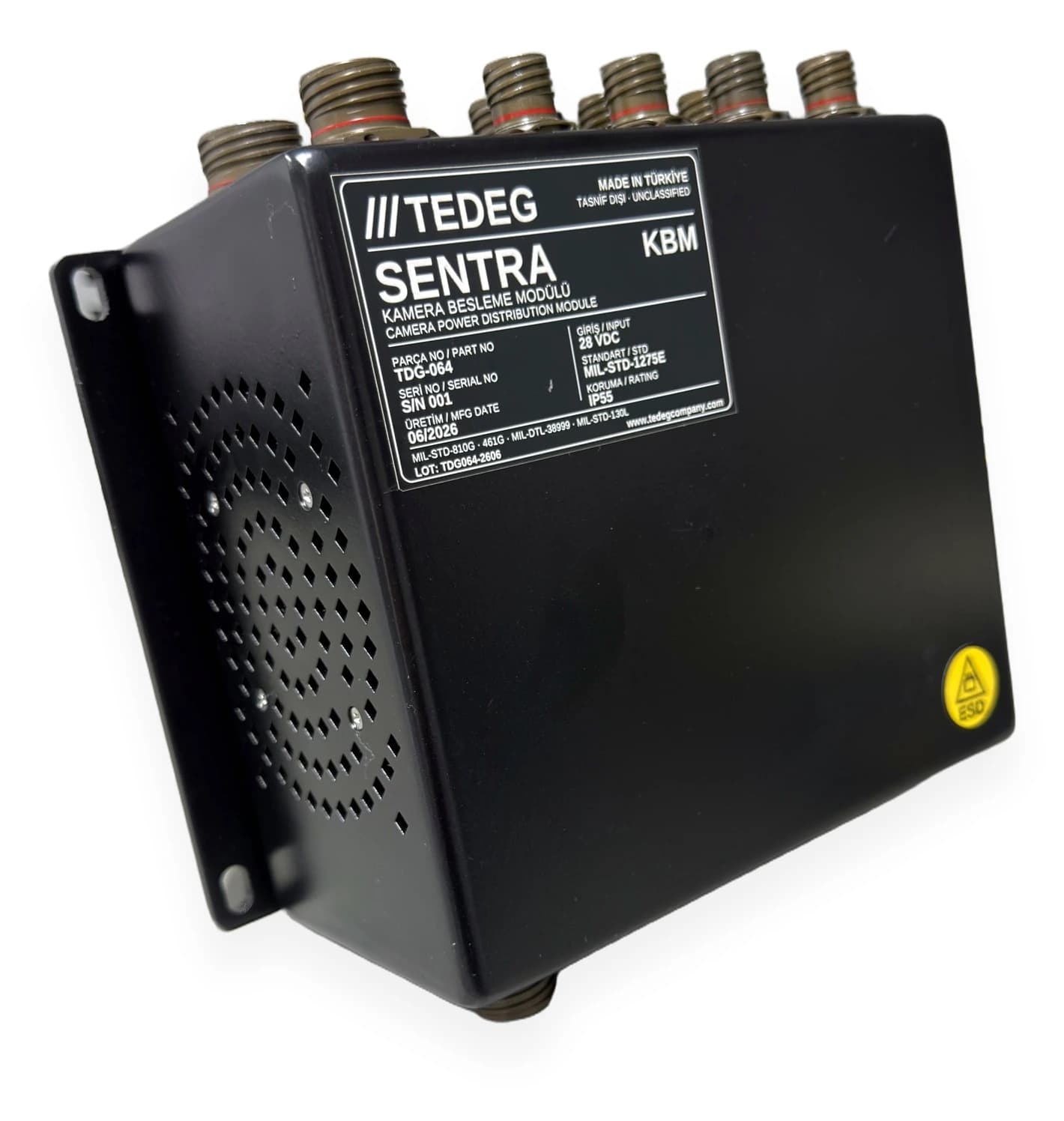

TDG-CAM-206 runs on 12 VDC. On military vehicles with a 24 / 28 VDC electrical system, TEDEG supplies the cameras together with the SENTRA KBM Camera Power Distribution Module, which provides 11 galvanically isolated 12 VDC camera outputs from a MIL-STD-1275E 28 VDC input and carries the video lines on the same harness. Cameras, camera power and vehicle power distribution therefore come from a single supplier, with one point of contact for integration.

Connector type, cable length and mounting are matched to the platform during the project, and TEDEG's engineering team supports system integration and acceptance testing.

Corporate assurance: TEDEG Defence holds NATO supplier registration NCAGE TM885 and operates an ISO 9001 quality management system.
