Power Systems · 6 products
AC-DC & DC-DC Power Converters
Stable military power from the grid, a generator or the battery
Most military loads need a stable DC voltage: 24 VDC, 28 VDC, or several levels on the same platform. The converters in this category turn grid, generator or vehicle battery power into those voltages. Their fanless, sealed construction is designed for maintenance-free operation under dust, water and vibration.
AC-DC & DC-DC Power Converters — products
TEDEG Defence is an Ankara-based Turkish defence manufacturer that designs and builds mil-spec AC-DC and DC-DC converters and 28 VDC power conversion units for military vehicles and systems.
All products in this and the other six categories: Product Catalogue 2026 (PDF)
Model comparison
Key values from each model's specifications, side by side. Open a model for its full specifications.
Swipe sideways to see all columns.
| Model | Input | Output | Power / current | Ingress protection (IP) | Operating temperature | Weight |
|---|---|---|---|---|---|---|
16–28 VDC (24 VDC nominal) |
| 3400 W | Not listed | -20 °C to +60 °C | Approx. 17–20 kg | |
230 VAC ±10%, 50 Hz (universal 90–264 VAC) | Isolated 28 VDC, 3 independent converter modules | ≈1.7 kW | Not listed | -32 °C to +55 °C | Not listed | |
360–440 VAC, 3-phase (L-L), 47–63 Hz | 28 VDC, ±1% typ. (±2% max.) | 1 / 2 / 3 / 4 kW | IP67 | Not listed | Not listed | |
Single-phase universal AC, 90–265 VAC (220 VAC nominal) | 24 VDC (23.8–24.5 V), ±1% regulation | 1000 W continuous · 1200 W peak (up to 30 minutes) | IP67 | −40 °C to +55 °C (1 kW continuous) | Not listed | |
10–18 VDC (12 VDC nominal) | 24 VDC regulated (23.8–24.5 V) |
| Not listed | -32 °C to +55 °C | Not listed | |
Single-phase 90–265 VAC, 45–420 Hz (A1000) · three-phase 360–440 VAC, 47–63 Hz (A 380) | 24 VDC (A1000) · 28 VDC nominal, 12–48 VDC configurable (A 380) | Not listed | IP67 | Not listed | Not listed |
— = not listed in the model's key specifications; see the product page for full details.
About AC-DC & DC-DC Power Converters
Which converter for which need?

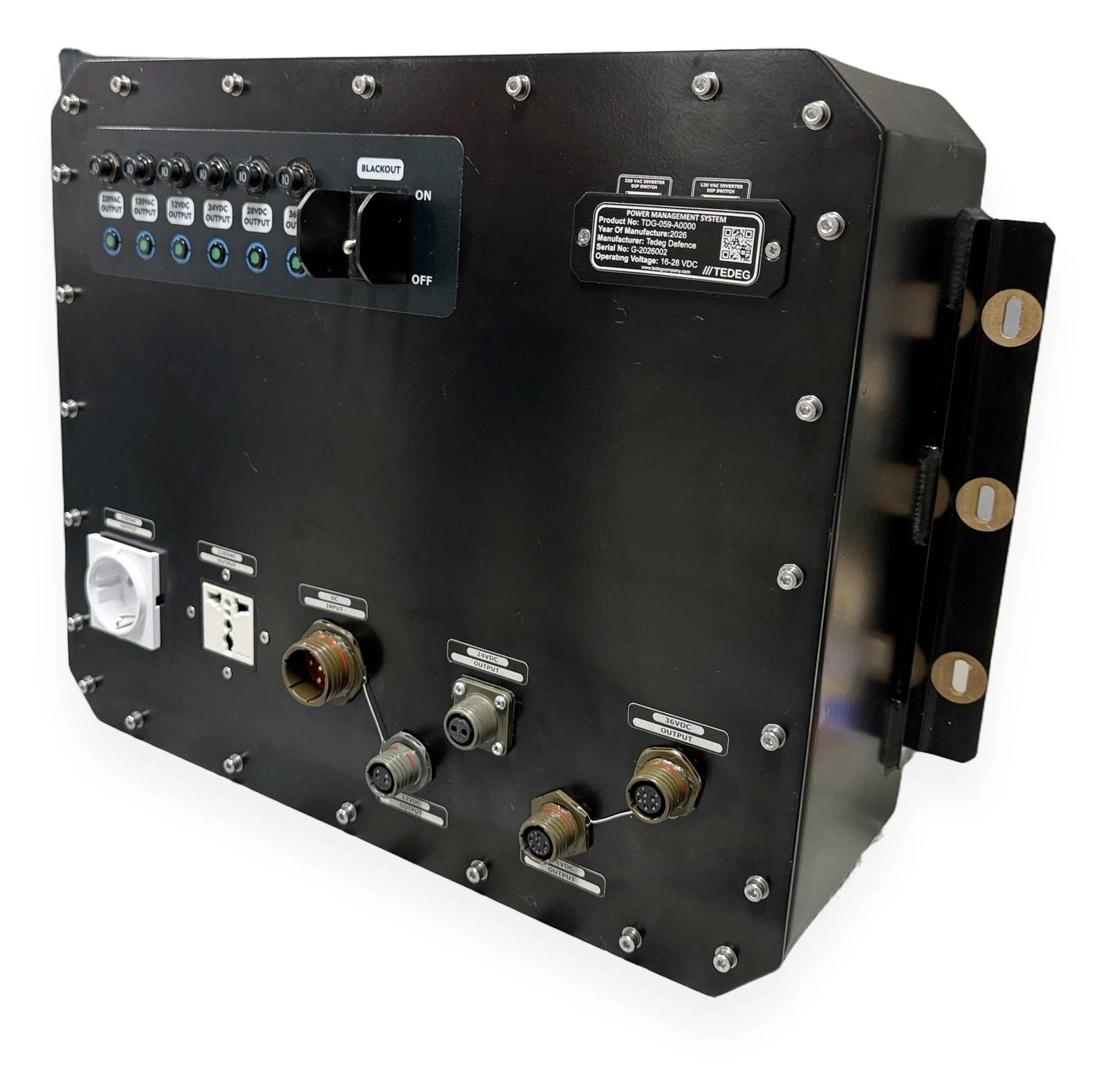

- Multi-level DC and 120/220 VAC from a 24 VDC vehicle bus: PowerGuard TPS-24DCAC — 16–28 VDC input, 12/24/28/36 VDC + pure sine AC, 3400 W, BLACKOUT mode
- Isolated 28 VDC from 230 VAC with per-channel current management: PowerGuard TPS-28 — 50 A / 10 A / 2 A switchable outputs, RS-485

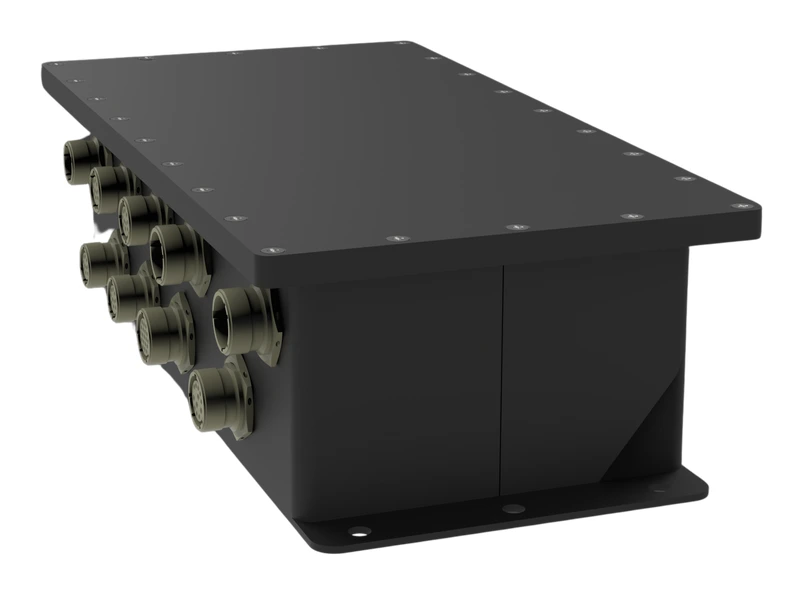

- 28 VDC from three-phase 380 VAC: PowerGuard-A 380 — 1–4 kW
- 24 VDC from single-phase AC, including 400 Hz input: PowerGuard-A1000 — 45–420 Hz input, 1 kW, active PFC

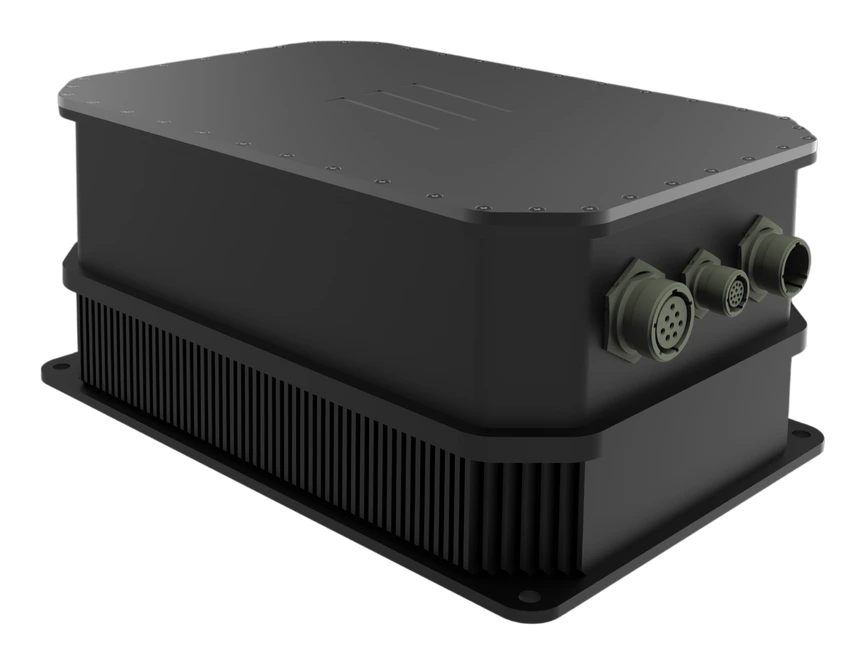

- 24 VDC from a 12 VDC vehicle bus: PowerGuard-D1000 — 1 kW, η ≥ 90%, fanless
What to check when choosing a converter: input source (single phase, three phase, vehicle DC), output voltage and number of outputs, continuous power, isolation needs, cooling method and communication interface.
If you need AC at frequencies other than 50 Hz, see Frequency Converters, Motor Drives & Military UPS Systems.
FAQ
Which converter should I choose for my input source?+
For multi-level DC and AC from a 16–28 VDC vehicle bus, the PowerGuard TPS-24DCAC: 12 / 24 / 28 / 36 VDC (10 A each) + 120 VAC and 220 VAC pure sine, 3400 W in total, and a BLACKOUT mode that extinguishes all panel LEDs with one switch. For 24 VDC from a 12 VDC vehicle bus, the PowerGuard-D1000: 10–18 VDC input, 24 VDC / 1 kW, fanless. For 24 VDC from single-phase AC, the PowerGuard-A1000: 45–420 Hz input, 24 VDC / 1 kW, active PFC. To distribute isolated 28 VDC from 230 VAC through individually switched outputs, the PowerGuard TPS-28: 50 A, 10 A and 2 A outputs, ≈1.7 kW, RS-485 HD. For 28 VDC from three-phase 360–440 VAC, the PowerGuard-A 380: 1 / 2 / 3 / 4 kW, IP67, fanless.
Is there an AC-DC converter that can run from a 400 Hz supply?+
Yes. The PowerGuard-A1000 has an input frequency range of 45–420 Hz, so the same unit is used on 50/60 Hz mains and on 400 Hz military power systems. The power factor is ≥ 0.99 at 50/60 Hz but typically falls to 0.75–0.8 at 400 Hz; allow for this when sizing fuses, cabling and EMI filters. The PowerGuard-A 380 is specified for 47–63 Hz and the TPS-28 for 50 Hz (90–264 VAC universal input); these two units are not specified for a 400 Hz input.
How do the converters communicate with my system, and which control signals do they provide?+
The TPS-28 reports the voltage and current of every converter and output over RS-485 HD; each output is switched individually, and there is a Remote ON/OFF input and a Power OK alarm output. On the PowerGuard-A 380, Ethernet (TCP/UDP), RS-485 (Modbus) or CAN-Bus (J1939 / CANopen-style) interfaces are optional, and output sequencing, soft-start and delay parameters are programmed through them. The PowerGuard-A1000 and D1000 come with an opto-isolated Remote ON/OFF input and a Power-Good (DC-OK) signal as standard (the A1000 also has a fault/alarm signal); a CAN-Bus, RS-485 or Ethernet interface and the dashboard-mounted Remote Commander Control Box with a Blackout button are optional. The TPS-24DCAC has no communication interface; it is controlled from the front panel through 10 A thermal breakers, a LED per line and the BLACKOUT switch.
Do the fanless units deliver full power at high temperature?+
The PowerGuard-A1000 (−40 °C … +55 °C) and PowerGuard-D1000 (−32 °C … +55 °C) deliver 1 kW continuous up to +55 °C without derating; heat passes through the conduction-cooled baseplate into the vehicle frame or an external heatsink. The TPS-28 is fanless and operates from −32 °C to +55 °C, the PowerGuard-A 380 is conduction-cooled in an IP67 monolithic aluminium enclosure, and the TPS-24DCAC, the only fan-cooled unit, carries 100% load between −20 °C and +40 °C and runs continuously at +60 °C with the DC-DC modules at 70% and the DC-AC modules at 60%. On the standards side, the datasheets list MIL-STD-810 and MIL-STD-461 with IP67 for the PowerGuard-A1000, MIL-STD-810G and MIL-STD-461 for the D1000 and TPS-28, and MIL-STD-810H shock / vibration profiles and MIL-STD-461 principles for the PowerGuard-A 380; these units are designed to those standards, so state any test report requirement at the quotation stage.
Can the output voltage, power class and connectors be customised?+

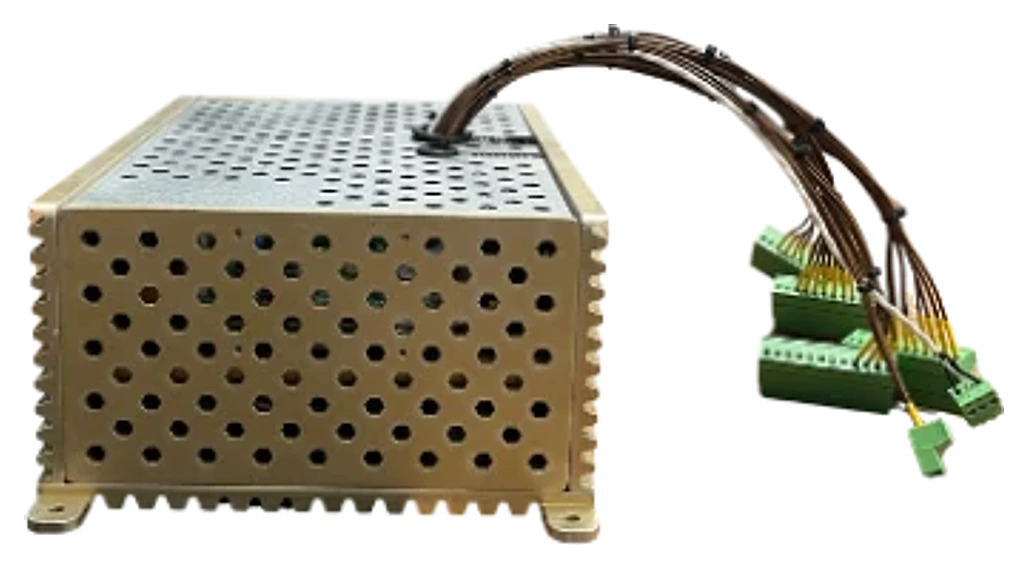

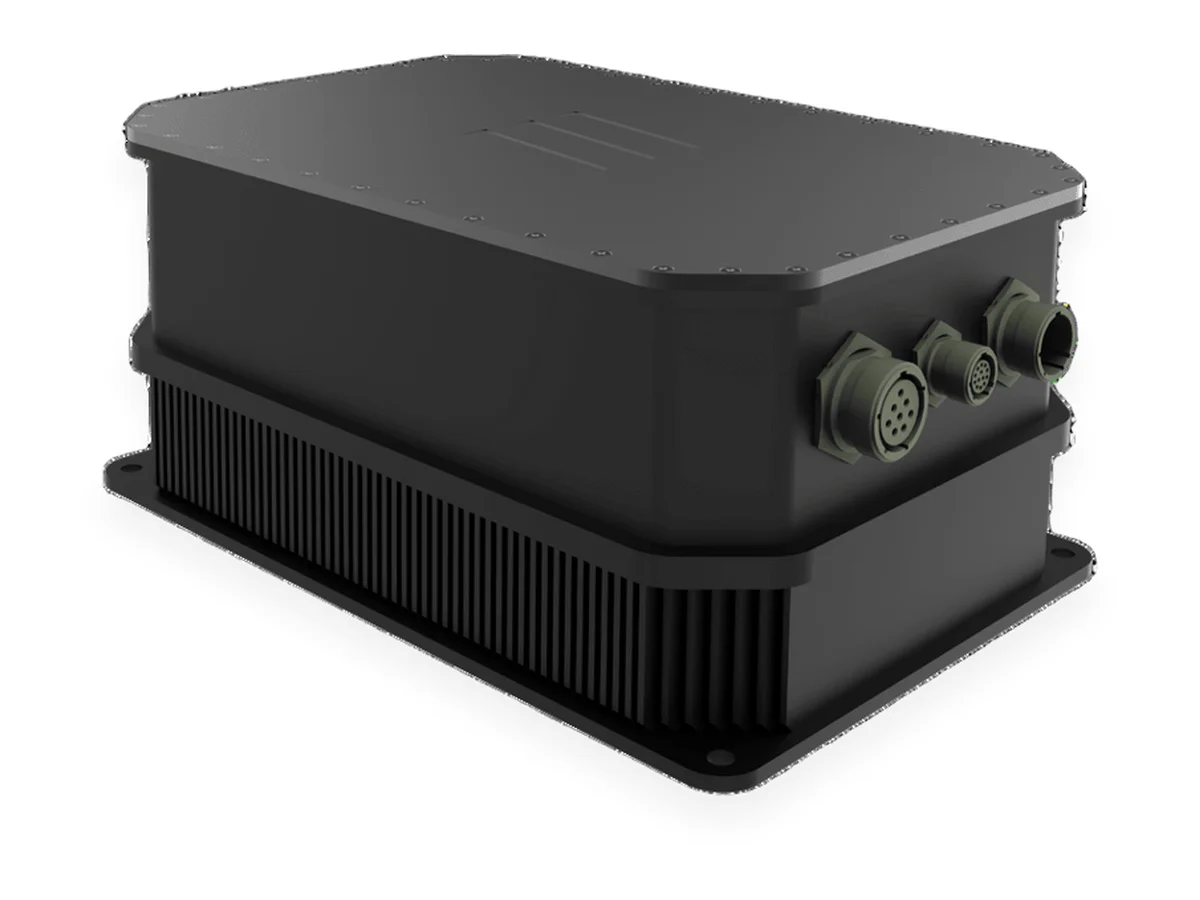

The PowerGuard-A Series offers 12 / 24 / 28 / 36 / 48 VDC outputs and 1–4 kW power classes on the same hardware platform. On the TPS-28, total power can be upgraded to 10 kW as required, and the connection is chosen as a MIL-DTL-38999 connector or an industrial terminal block. The D1000 offers an optional ±5% output trim and pre-terminated harness sets on request; on the TPS-24DCAC, alternative output combinations and connector types are configured thanks to the modular architecture. For a wider range, the Mil-Spec AC/DC Converter family is configured from 1 to 10 kW with single-phase or three-phase input and the customer's output voltage (12 / 24 / 28 / 48 V).
What information should I send for a quotation and datasheet?+
Input source (single phase, three phase, vehicle DC), output voltage and number of outputs, continuous power, isolation needs, cooling method and communication interface are enough for a quotation; send them through the quote form. Datasheets are on the product pages: Turkish and English for the TPS-24DCAC and TPS-28, and English for the PowerGuard-A 380, A1000 and D1000.
