Power Systems · 1 product
Auxiliary Power Units (APU)
Uninterrupted 28 VDC with the main engine off — Silent Watch
Running an armoured vehicle's main diesel engine just to power its electronics during a surveillance task burns fuel and gives the vehicle away acoustically and thermally. Auxiliary power units (APU) solve this by powering mission electronics at 28 VDC with the main engine off — a capability known as Silent Watch.
Auxiliary Power Units (APU) — products
TEDEG Defence is an Ankara-based Turkish defence manufacturer that designs and builds military auxiliary power units (APUs) supplying 28 VDC with the main engine off for tanks and armoured vehicles.
All products in this and the other six categories: Product Catalogue 2026 (PDF)
About Auxiliary Power Units (APU)
The TEDEG APU

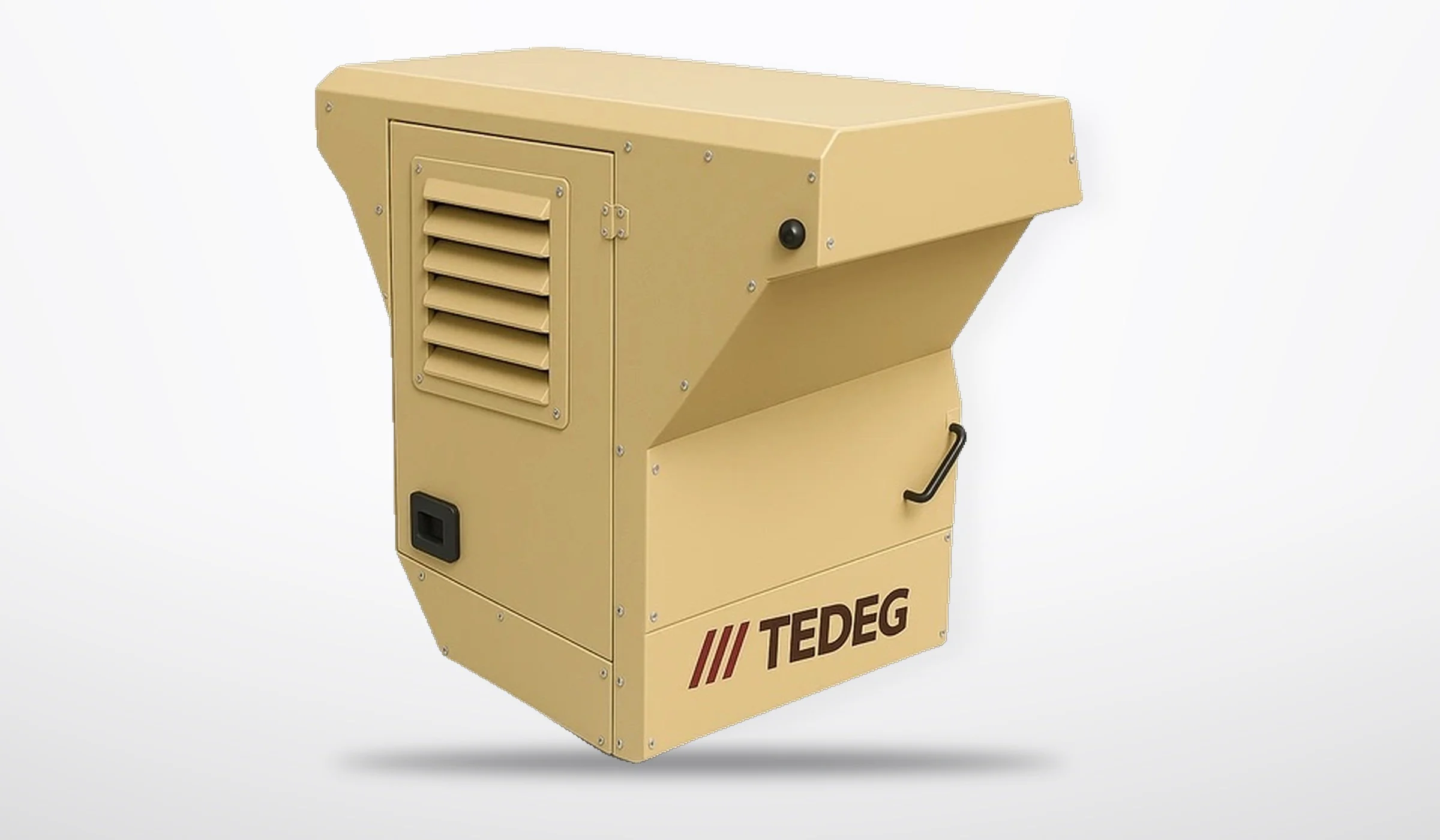

- Tanks, armoured vehicles and military trucks: PowerGuard YGG-DS11 — 28 VDC, 10 kW, water-cooled Kubota diesel; power options from 2 to 100 kW to suit the platform
What to check when choosing an APU: total load to be supplied during Silent Watch, installation volume and weight limit, cooling method, fuel system integration and control/monitoring interface.
Our military APU guide covers the operational value of Silent Watch and APU sizing in detail. For short-term backup after engine shutdown, the Supercapacitor Auxiliary Power Backup Unit is also an option.
FAQ
Which power class should I choose, and how do I size the APU?+
The PowerGuard YGG-DS11 delivers 28 VDC / 10 kW; across the TEDEG APU family, power output is tailored to the platform from 2 kW to 100 kW. To size the unit, define the total load to be supplied at the same time during Silent Watch (weapon systems, communications, climate control), the installation volume and weight limit in the vehicle, the cooling method, fuel system integration and the control and monitoring interface. For reference, the YGG-DS11 has a 1000 × 591 mm footprint, a 435 mm engine height and weighs 375 ± 10 kg.
How is the APU integrated into the vehicle, and does it need a separate fuel tank or battery?+
No. TEDEG APUs are integrated directly into the vehicle's design and need no separate batteries or fuel tanks. The YGG-DS11 uses a water-cooled, vertical, turbocharged Kubota D1105 diesel engine; it is started by a starter motor, runs on diesel fuel and has an integrated water-cooling system. The maximum operating temperature is +49 °C and the storage temperature −40 °C … +60 °C.
How is the APU controlled and monitored?+
The IP67 control panel mounted close to the APU carries LEDs for APU status, fuel level, pressure, DC current and battery voltage; Start/Stop, Auto/Manual and Reset buttons; a fault code indicator, adjustable alarm volume, a night mode and access to the latest 500 log records. The remote controller (12–24 VDC, 120 × 110 × 60 mm, 630 g, IP67, −40 °C … +85 °C) switches the APU on and off, shows its data on the information screen, manages the air-conditioning system, triggers the CIT test and provides an emergency shutdown.
Which military standards are stated?+
The datasheet states MIL-STD-810G and MIL-STD-461E/F compliance and IP67 dust and water protection for the control panel and the remote controller; these figures apply to the control units. If your platform requires testing of the complete APU, state the test plan and your report requirement at the quotation stage.
What is used instead of an APU for a short-term need?+
For short-term backup after the engine is switched off, the PowerGuard EBB Supercapacitor Backup Unit is an option: 3600 F supercapacitor, 16–32 VDC, 3 hours of supply after ignition off, no more than 1 kg. If mission electronics must be supplied continuously at the 10 kW level during Silent Watch, the APU is the right choice.
What information should I send for a quotation?+
Send the platform type, the total 28 VDC load to be supplied during Silent Watch (kW), the expected watch duration, the installation volume and weight limit in the vehicle and the control and monitoring interface you require through the quote form. The YGG-DS11 datasheet is on the product page, and our military APU guide covers Silent Watch and APU sizing.
Engineering Support
Our engineering services can adapt the products in this category to your platform, integrate them or test them against your programme requirements.
Quality and Testing
Other product categories
Looking for the full range?
Contact our engineering team for datasheets and quotations.
