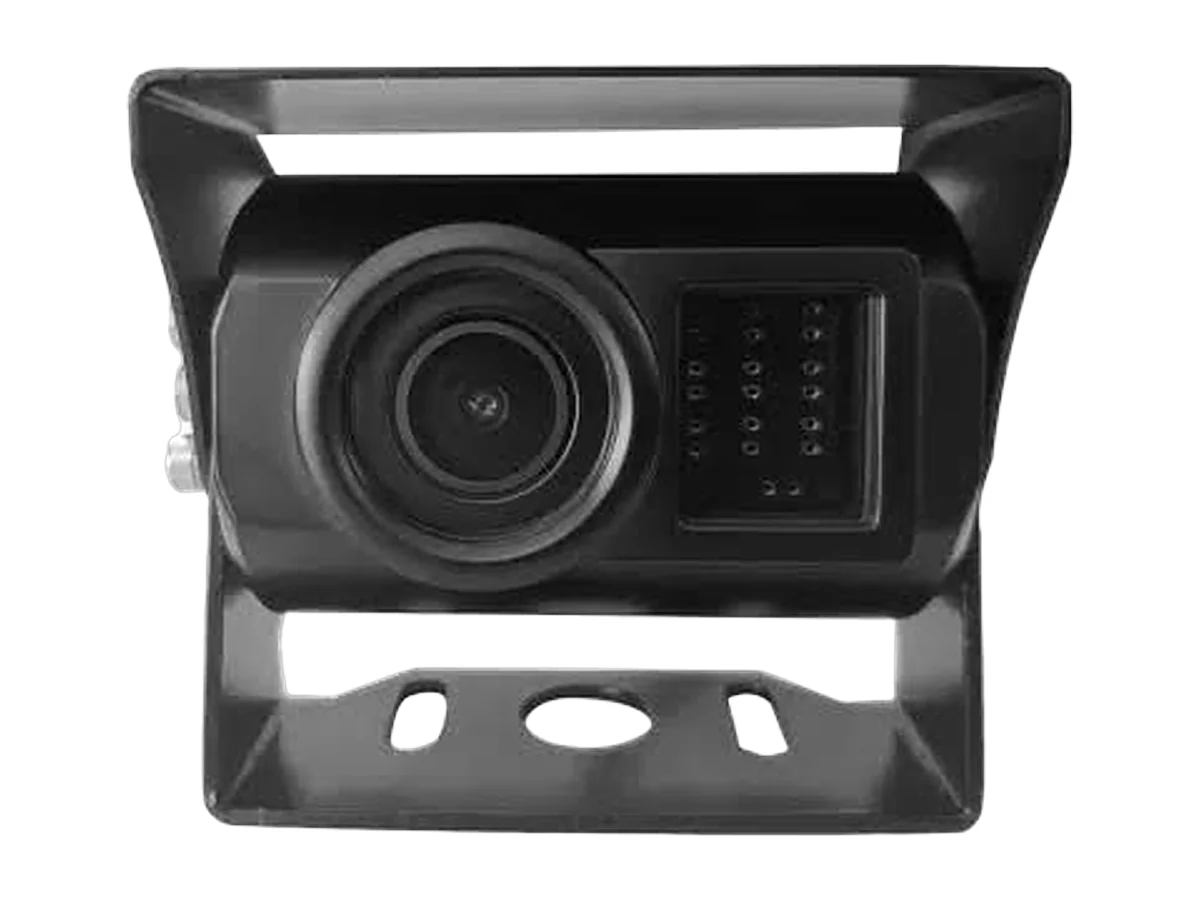

TDG-CAM-204 VNIR Starlight Rear-View Camera — 1080P AHD, 0.1 mLux, 120°, IP69K

TDG-CAM-204 is a VNIR starlight AHD rear-view camera for heavy-duty vehicles. Its large 1/1.9" CMOS (IMX385) sensor delivers colour images down to 0.1 millilux (0.0001 lux), so the driver keeps a usable colour picture at night when a standard camera would show only noise. Local tone mapping (LTM) and 3D noise reduction keep detail in dark and bright parts of the scene.

The camera sits in an IP69K alloy housing rated for 8G vibration and 100G shock, with a 120° field of view, mirror function and a waterproof circular connector. It operates from −32 °C to +70 °C and can be stored from −40 °C to +85 °C. Infrared illumination is available with manual control.

Imaging:

Electrical and physical:

The technical values refer to the standard configuration. Connector, cable length and mounting interface can be adapted to project requirements.

• Rear view and reversing of military trucks, tactical wheeled vehicles and heavy-duty special vehicles
• Night driving and manoeuvring where colour detail matters in very low light
• Engineering, recovery and logistics vehicles working in dust, rain and high-pressure washing
• Convoy and yard operations that continue after dark

TDG-CAM-204 runs on 12 VDC. On military vehicles with a 24 / 28 VDC electrical system, TEDEG supplies the cameras together with the SENTRA KBM Camera Power Distribution Module, which provides 11 galvanically isolated 12 VDC camera outputs from a MIL-STD-1275E 28 VDC input and carries the video lines on the same harness. Cameras, camera power and vehicle power distribution therefore come from a single supplier, with one point of contact for integration.

Connector type, cable length and mounting are matched to the platform during the project, and TEDEG's engineering team supports system integration and acceptance testing.

Corporate assurance: TEDEG Defence holds NATO supplier registration NCAGE TM885 and operates an ISO 9001 quality management system.
