TDG-DSP-101 10.1" Rugged Vehicle Display — 1920 × 1200 WUXGA, 600 cd/m², 9–36 VDC

TDG-DSP-101 is a 10.1-inch rugged vehicle display for monitoring camera, mission-computer and sensor video in military and heavy-duty vehicles. Its 1920 × 1200 WUXGA ADS-type TFT-LCD panel delivers 600 cd/m² behind a 3 mm tempered anti-glare cover glass, so the picture stays readable in direct sunlight.

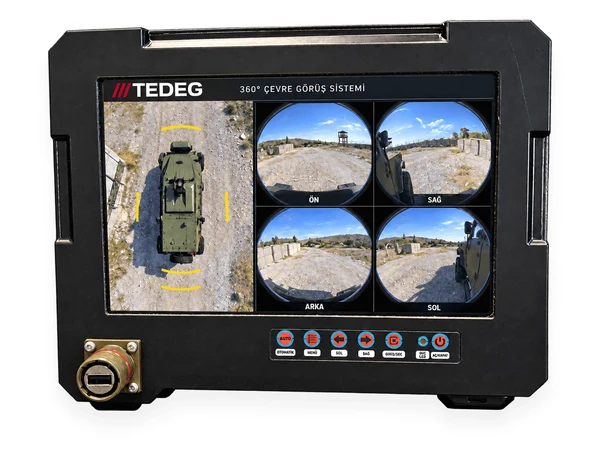

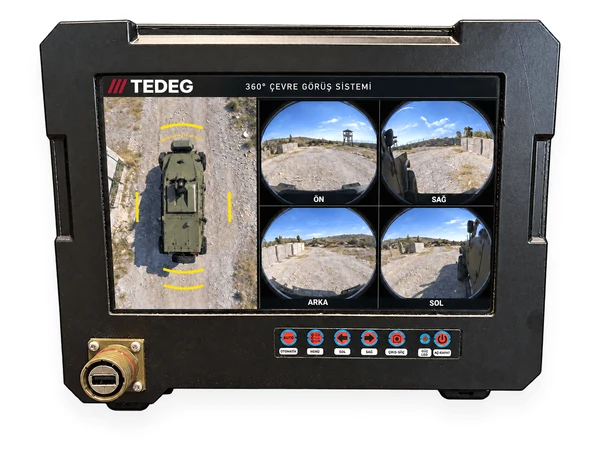

Its projected-capacitive (PCAP) multi-touch surface works as a driverless USB HID device, so maps, mission software and camera views are controlled directly on the screen with a gloved hand. An 85° viewing angle in every direction and a 900:1 contrast ratio keep the image legible from the driver and commander positions. The front OSD keypad gives menu, source selection and auto-adjust without opening any cover; front and rear USB ports add flexibility in the field, and the built-in 2 × 2 W stereo speakers reproduce audio received over HDMI without any external device.

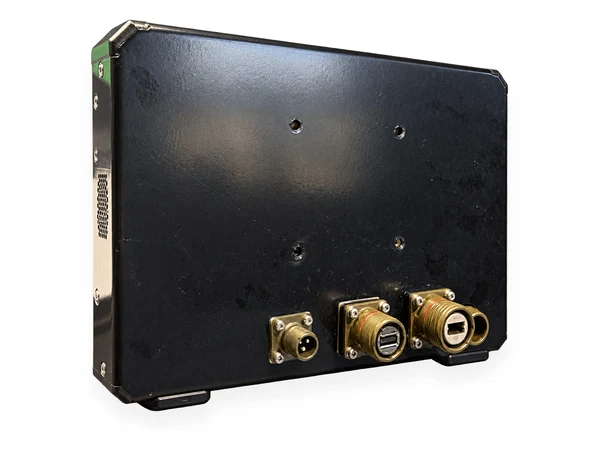

The aluminium housing, military-type circular connectors and the wide 9–36 VDC supply range connect the unit directly to 12 / 24 VDC vehicle electrical systems. It suits tactical vehicles, armoured platforms, command-and-control cabins and mobile systems; on a surround-view installation it serves as the operator screen for the vehicle cameras.

Display panel:

Cover glass and front face:

Electrical and interfaces:

Mechanical and environmental:

Options and variants (order codes):

Variant letters can be combined (for example TDG-DSP-101-BN: optical bonding + NVIS). Further options: AR coating (< 0.5% reflection), conformal coating for marine and salt environments, sun shroud, yoke / console mounting bracket, 2.5 m or 4.5 m IP67 harness, and 12.1" and 15.6" family members. All options are specified at order. Display panel values are per the panel manufacturer specification; connector types, additional video inputs and the mounting interface can be adapted to project requirements.

• Tactical and armoured vehicles: driver vision, rear view and 360° camera monitoring
• Command-and-control cabins: mission computer and map display
• Weapon and sensor systems: operator display
• Mobile and field systems: sunlight-readable industrial display

TDG-DSP-101 completes the vehicle vision chain that TEDEG supplies from a single source: the TDG-CAM vehicle cameras capture the picture, the SENTRA KBM Camera Power Distribution Module powers them from the 28 VDC vehicle network and collects the video lines, and the display shows the result at the crew position. Because the display accepts 9–36 VDC directly, it needs no separate converter on 12 or 24 VDC vehicles.

The standard unit covers most installations; optical bonding, NVIS, 1,000 cd/m², multi-video input, extended temperature, CAN-Bus / RS-485 control and MIL-STD-1275E input-stage variants are available as order codes. Connector types, video inputs and the mounting interface are fixed with you in a pre-order interface control document, and TEDEG's engineering team supports integration and acceptance testing on the platform.

Corporate assurance: TEDEG Defence holds NATO supplier registration NCAGE TM885 and operates an ISO 9001 quality management system.
